PLATINA 100ES

Great fuel efficiency

The powerful DTS-i engine is designed to deliver unmatched performance and superior mileage. Platina ES has been designed to achieve maximum fuel efficiency with the convenience of modern features like alloy wheels, solid build, SNS suspension and its most unique attribute – the push button Electric Start.

Performance at a Glance

0nm

MAX TORQUE

0cc

ENGINE CAPACITY

0Kw

ENGINE OUTPUT

FUEL TANK

0kgs

KERB WEIGHT

Click and Drag for 360 View

CHOOSE YOUR COLOUR:

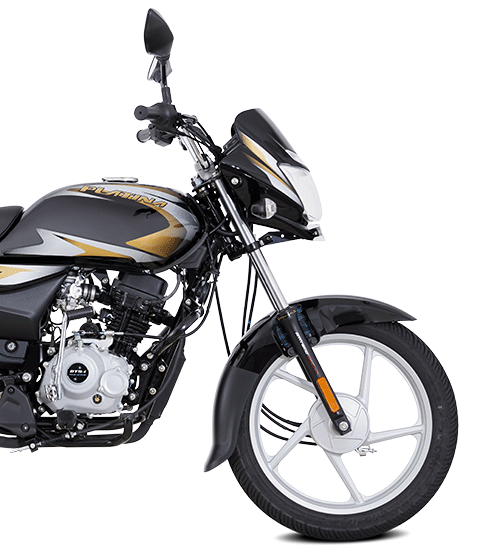

Ebony Black w. Brass Gold
Ebony Black Red
Ebony Black Blue
Ebony Black Silver

WHAT POWERS THE PLATINA 100ES

4-Stroke, DTS-i, Single Cylinder

The powerful DTS-i engine is designed to deliver unmatched performance and superior mileage.

Hydraulic, Telescopic Type, Spring Suspension

Long front & rear suspensions absorb every jerk and give a smooth ride, even on rough roads.

Front and Rear Drum Brakes

Ride with the assurance of best-in-class safety from a rugged build with 130mm front and 110mm rear drum brakes to safely take control in all riding situations.

LED DRL

Stylish & visible even in low light conditions.

THE COMPLETE SPECIFICATIONS

Engine

Type: 4-Stroke, DTS-i, Single Cylinder
Max Power: 5.8 kW (7.9 PS) @ 7500 rpm
Max Torque: 8.3 Nm @ 5500 rpm
Displacement: 102 cc
Max Speed:90 km/h (Internally Tested)
Bore x Stroke:47 mm X 58.8 mm
Starting:Electric Start
Transmission:4-speed (All Down Shift)
Frame:Tubular Single Down Tube with Lower Cradle Frame

Brakes & Tyres

Break Size Front: 130 mm Drum
Brake Size Rear: 110 mm Drum with Anti-Skid Braking System
Tyre Front: 2.75 x 17, 41P – Tube Type, Regular Tread Pattern
Tyre Rear: 3.00 x 17, 50P – Tube Type, Regular Tread Pattern
Brake Type Front: 130 Drum
Brake Type Rear: 110 Drum with Anti-Skid Braking System

VEHICLE

Wheel Base: 1255 mm
Length x Width x Height: 2006 mm x 713 mm x 1100 mm
Ground Clearance: 200 mm
Suspension Front: 135 mm, Hydraulic, Telescopic Type
Kerb Weight: 117 kg
Fuel Tank (Reserve / Usable): 11 L
Suspension Rear: 110 mm, Spring in Spring Suspension

ELECTRICALS

System: DC system
DRL: LED
Head Lamps: 12V, 35/35W, HS1 (Blue Ting)
